Why is My Amplifier in Protect Mode?

Amplifier in protect mode

If you’re struggling with an amplifier in protect mode, how to fix the issue depends on systematically checking possible faults—such as power supply, ground connection, and speaker impedance. Some amplifiers enter this protective state due to cooling problems or load mismatches. Following our technical guide on amplifier protection helps you identify symptoms, conduct stepwise checks, and learn when you might need professional service.

What is Amplifier Protect Mode? that’s what we need to break down first —

An amplifier’s protect mode is a built-in safety feature that shuts down the device when harmful conditions are detected, preventing lasting damage to internal circuits and connected speakers. When in protect mode, the amplifier disables its output, sometimes lighting up a “protect” indicator or blinking LEDs to warn the user. Conditions like overheating, surges of current (overcurrent/short circuit), excessive DC offset, or abnormally low input voltage interrupt the device and lead to this trigger.

The internal sensors monitoring temperature, current, and voltage activate the ‘Protect Mode’.

Warning indicators include flashing “PROTECT” messages, illuminated LEDs, or clicks as the relay disconnects the speakers.

How Protect Mode Fits into Amp Safety Logic?

Below is a simplified explanation of the safety logic:

The amplifier operates normally with regular signal amplification.
Sensors constantly measure temperature, current (for shorts/overload), and voltage.

When there’s an unsafe condition, the protect circuit triggers:

The output stage mutes, or the relays disconnect the speakers.
The “PROTECT” indicator activates, often with a visual light or error code.
The amp remains in this state until the fault is cleared or the device is reset.

This protect mechanism helps extend the life of your amplifier and speakers, making it essential for reliable audio performance.

A diagram illustrating this safety logic could use these basic blocks:

Input ➔ Amplification Stages ➔ Sensors (Temp/Current/Voltage) ➔ Protect Circuit (triggers upon fault) ➔ Output Relay/Speaker Disconnect ➔ User Indicator (Light/Message).

Such protection mechanisms are common in modern amplifiers. Top manufacturers like Sony highlight these features in their technical documentation.

Common Reasons Why Amplifier Goes Into ‘Protect Mode’

There could be not one but multiple internal and external factors that send an amplifier into Protect Mode:

Why Is My Amplifier in Protect Mode? – External Causes

When an amplifier enters Protect Mode, even when the volume is turned up, there could be reasons like:

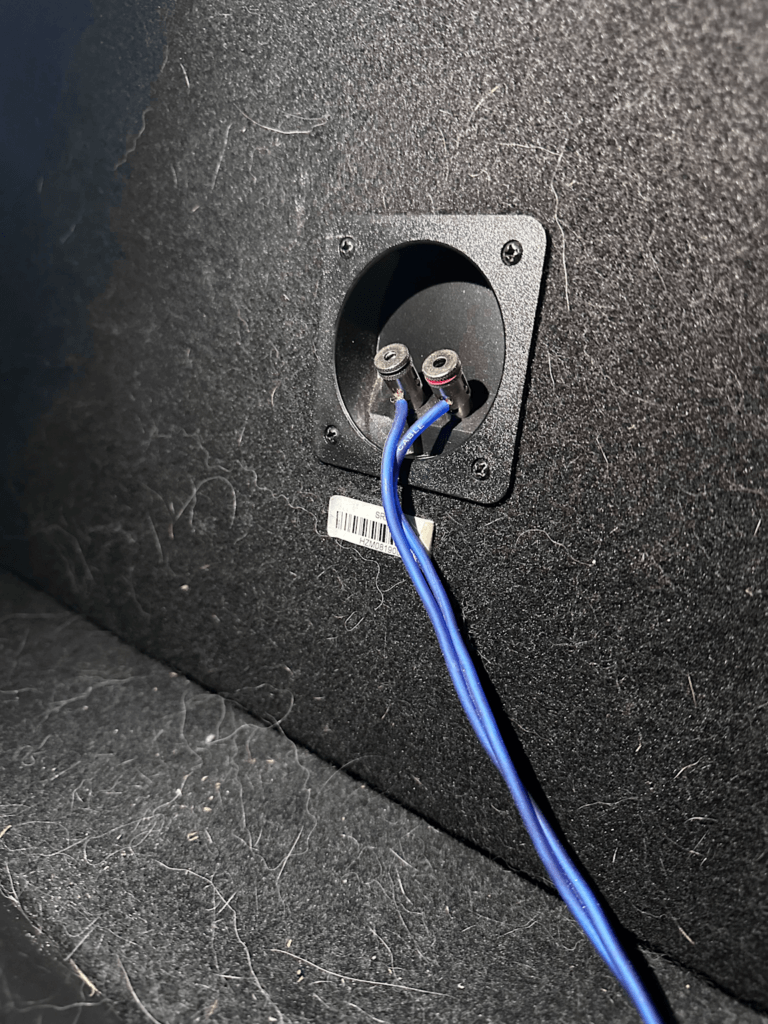

Wiring problems, such as short circuits, loose connections, or damaged wires, can cause electrical faults.
Impedance mismatches connecting speakers with incompatible impedance leading to excessive current flow, triggering protection.
Additionally, faulty speakers or damaged cables can produce shorts.
Environmental factors like overheating caused by poor ventilation or a low-voltage power supply are also significant.

When these external issues occur, the amplifier detects abnormal load conditions or excess heat, shutting down to avoid permanent damage. Proper wiring, load matching, and adequate cooling are essential to prevent these faults.

Why Is My Amplifier in Protect Mode? Internal Causes

After external reasons come certain internal triggers that send an amplifier into Protect Mode:

The most common causes are blown output transistors, damaged internal circuitry, or degraded components due to aging or overheating.
Sometimes, internal power supply issues or faulty protection circuitry itself malfunctions, causing false triggers.
When internal components fail, the amplifier senses irregular signals or excessive current and shuts down to prevent further damage.
If your amplifier enters protect mode even when the volume is low or not in use, consider internal inspection for blown transistors, damaged capacitors, or failed internal relays.

These faults often require professional repair. Maintaining internal components through regular servicing and avoiding prolonged operation at high volumes can reduce the chances of internal failure.

How to Get An Amplifier Out of Protect Mode? Troubleshooting Guide

Step 1: Identify Your Scenario

Determine when Protect Mode activates – at power-on, during operation, when volume increases, or intermittently. Each scenario points to different root causes.

If the amplifier’s Protect Mode activates immediately upon power-on, suspect power supply or ground faults.

Or, if it triggers during music playback or when volume is turned up, suspect load-related or thermal issues.

Knowing your specific scenario accelerates diagnosis. Document all details like time of day, ambient temperature, recently changed components, or recent power surges in your location.

Step 2: Scenario-Based Isolation

For the power-on protect mode, you must disconnect all outputs and retry.
For high-volume-triggered protect mode, you must progressively increase volume from minimum to identify the threshold where protection activates. This indicates an overload or thermal condition.
For intermittent protect mode, you must note patterns – does it occur after extended play, in warm weather, or with specific music types? Intermittent behavior suggests borderline component failure or marginal load conditions rather than catastrophic faults.

Step 3: Load Assessment for Volume-Related Issues

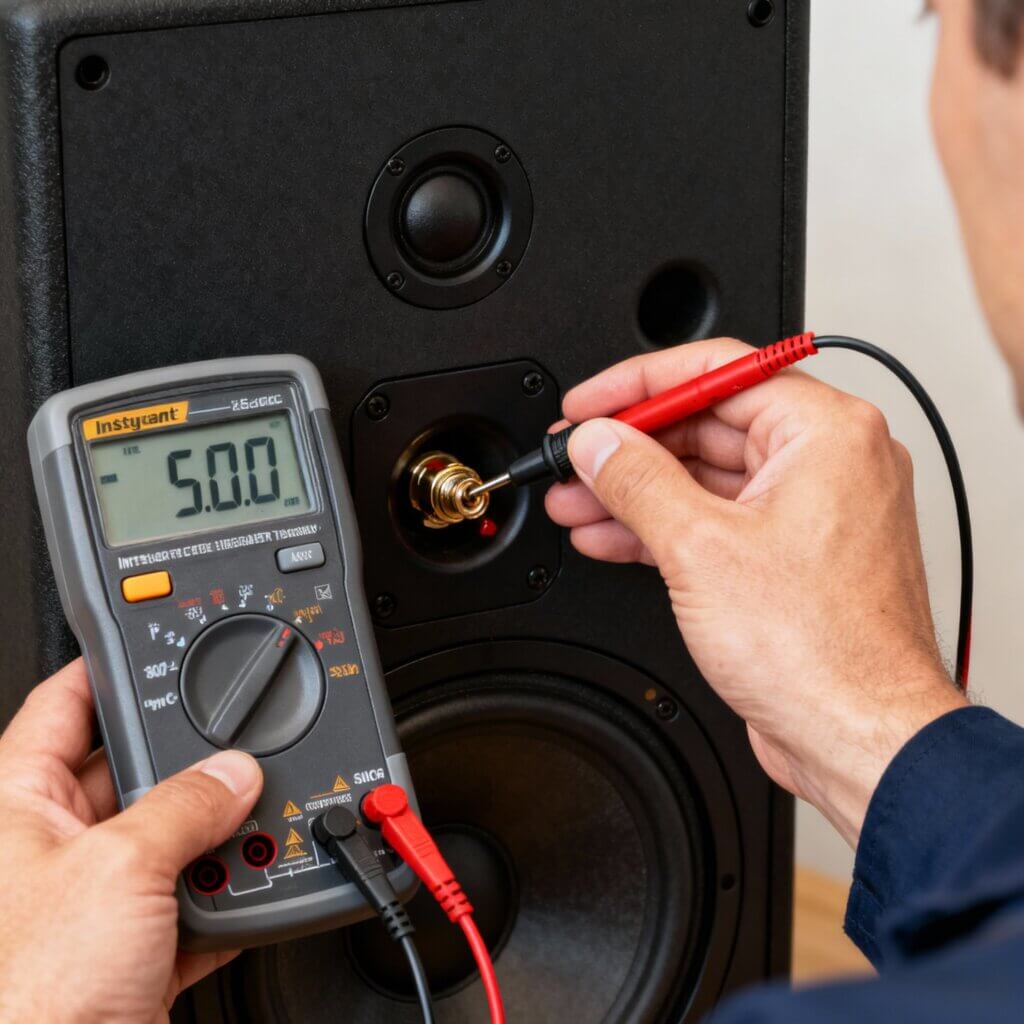

Why is my Amplifier in protect mode when the volume is turned up? This common scenario usually indicates impedance mismatch or thermal issues. Measure speaker impedance with a multimeter. Compare against amplifier specifications.

If your sub is rated at 2 ohms but your amp supports minimum 4 ohms, you’ve found your problem.

Inspect ventilation; high-volume operation generates heat, and restricted airflow triggers thermal shutdown.

Remove any blankets, covers, or nearby obstructions. Ensure the amplifier can “breathe” properly by maintaining clear space on all sides.

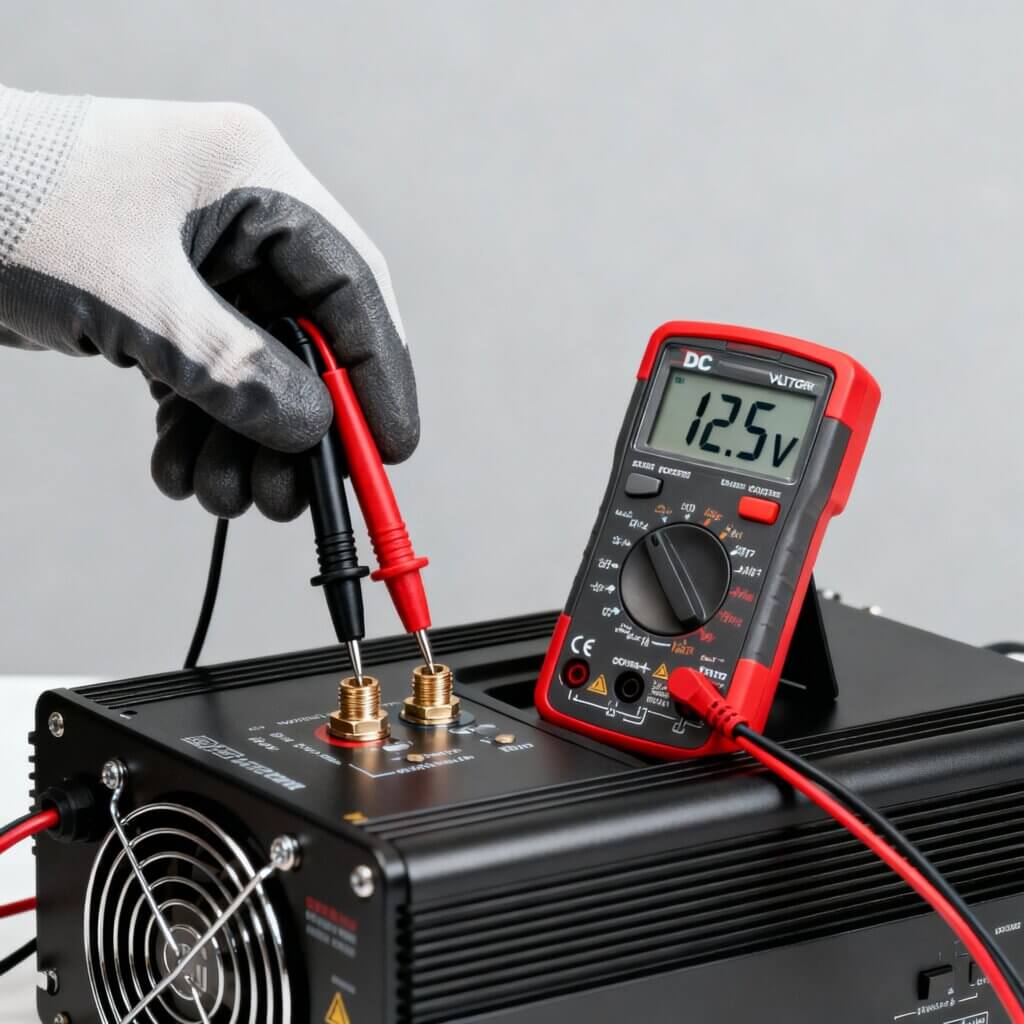

Step 4: Power Supply and Ground Diagnostics

For scenarios where protect mode activates consistently, measure voltage stability. Fluctuating voltage indicates ground connection problems or undersized power wiring. Ground connections are critical (corroded or loose grounds) and the most overlooked culprit.
Reconnect and tighten ground wires at both the battery and chassis. Make the ground connection to bare metal, not painted surfaces. Measure resistance across the ground path using your multimeter; it should read near zero ohms.

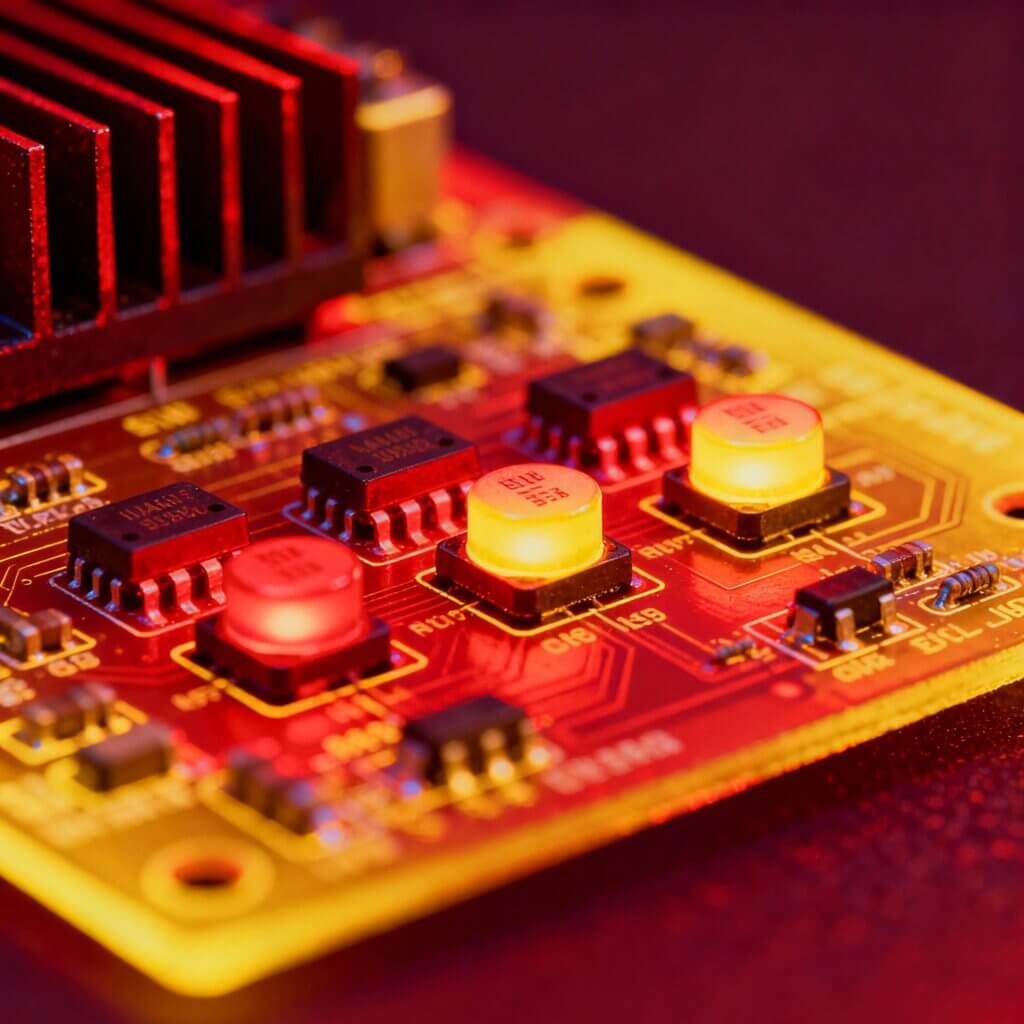

Step 5: Component-Level Analysis

If your specific scenario persists despite Steps 1-4, the amplifier likely has an internal component failure. Output transistors commonly fail, causing scenario-specific protect activation. Thermal testing with infrared cameras identifies failing transistors.
At this stage, professional repair is necessary, particularly if the amplifier is still under warranty.

If your Amplifier is constantly entering Protect Mode, you must be facing trouble. However, since the problem is reversible, there is nothing to worry about.

Amplifier in Protect Mode – Solutions & Preventive Measures

Most protect mode problems resolve with proper wiring and load management:

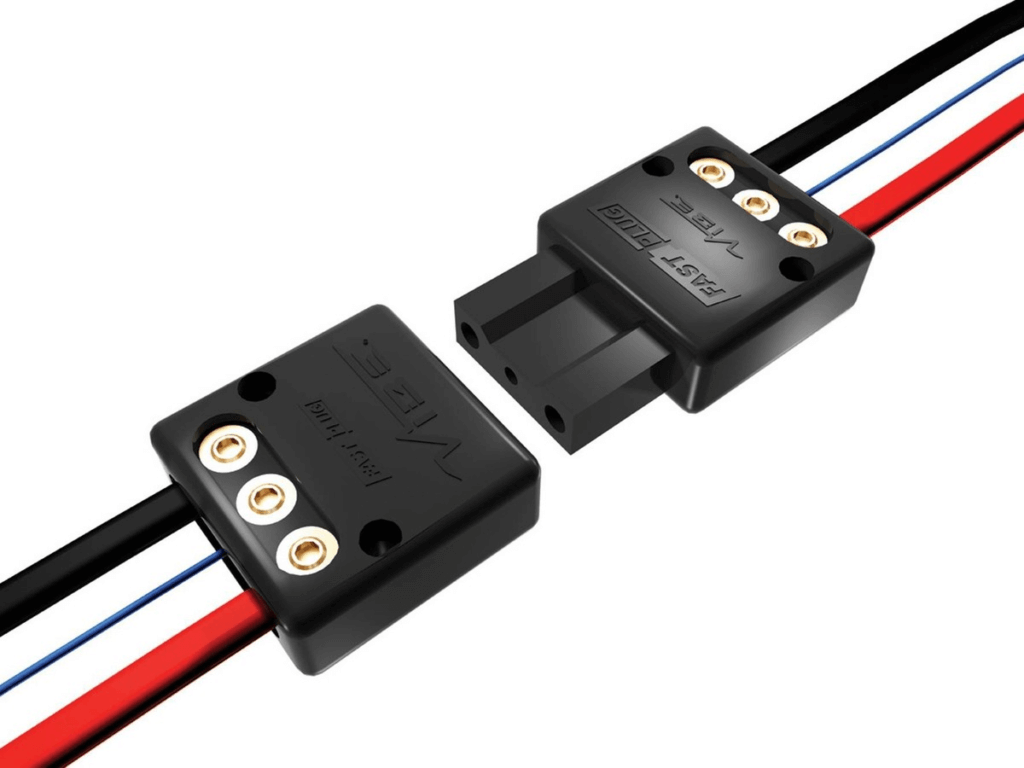

Check all connections at power terminals, ground points, and speaker outputs.
Tighten any loose connections by hand, then use a wrench for final security.
Replace corroded connectors with fresh terminals.
Confirm your speaker impedance matches the amplifier’s minimum rating; mismatched loads force the amp to work harder and trigger protection.
If impedance is correct but protection persists, reduce the number of connected speakers or upgrade to speakers with higher impedance values.

Wiring and Grounding

Use wire gauges appropriate for your amplifier’s power rating. Undersized wires generate excessive heat and voltage drop. Follow manufacturer specifications: typically 4 AWG for high-power systems, 8 AWG for moderate systems.

Ground wires must connect directly to bare metal chassis, not painted surfaces. Remove paint at the ground point using a wire brush for solid contact. Keep power and ground wires separated by at least 12 inches to avoid signal interference. Never coil them together.

Ventilation and Cooling

Position your amplifier with at least 4 inches of clearance on all sides. Remove blankets, covers, or nearby objects that block airflow.

Place the amp on a shelf rather than on carpet. Install additional fans if operating in hot environments. Ensure the amplifier is not stacked with other heat-generating equipment.

Maintenance

Inspect connections every 6 months, especially in vehicles exposed to vibration. Clean dust from ventilation grilles using compressed air. Check for corrosion on connectors and replace damaged terminals promptly. Test impedance quarterly to confirm speaker conditions haven’t changed. Replace fuses only with identical ratings, as oversized fuses defeat protection circuits.

When to Seek Professional Repair for Amplifier in Protect Mode?

Critical Red Flags

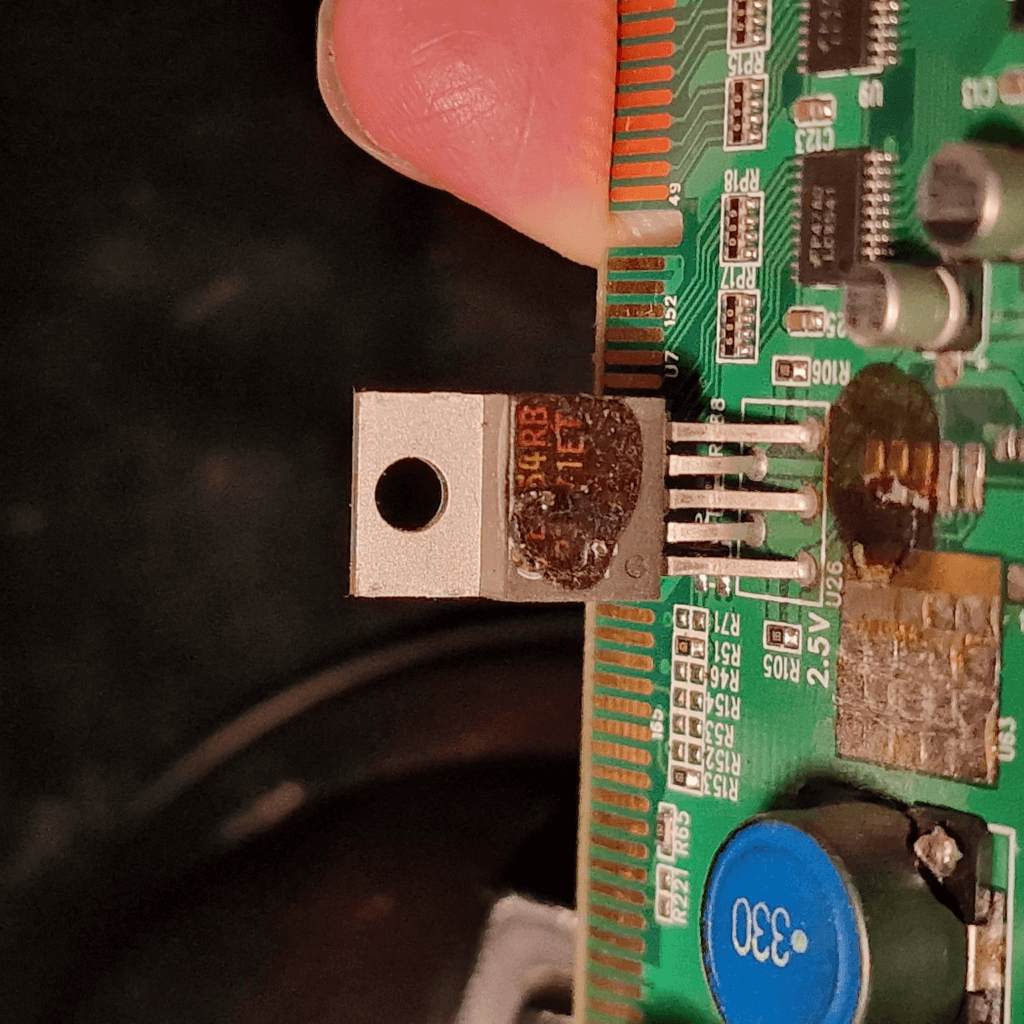

Stop troubleshooting immediately if you notice burning smells, visible component damage, or scorch marks on the circuit board. These indicate internal failure requiring specialist attention. Persistent protect mode after completing all troubleshooting steps suggests blown output transistors or failed internal regulators. Amplifiers that activate protect mode within seconds of power-on typically have serious internal faults. Do not attempt further diagnostics.

Safety Concerns

Never probe inside an amplifier’s chassis while powered on—high voltages present electrocution risk. Internal capacitors store charge even when disconnected from power, creating hazardous conditions. Melted plastic or leaking fluid means component failure has progressed beyond safe repair territory. Do not attempt to operate an amplifier showing these signs.

Finding a Technician

Contact authorized service centers for your amplifier brand. They stock correct replacement parts and understand manufacturer specifications. Request a diagnostic quote before committing to repairs. Warranty may cover some issues if your amplifier is recent. Ask about repair timelines and warranty on work performed. Independent audio repair shops with solid reviews also provide reliable service. Get references before handing over your equipment.

Frequently Asked Questions (FAQ)

Q: My amplifier goes into protect mode only when volume is high. What’s causing this?

A: High-volume operation draws significant current. If the protect mode activates only at high volume, check the speaker impedance first. Impedance lower than your amplifier’s rating forces the amp to work harder, generating heat and triggering thermal protection. Verify all speakers match the specified impedance.

Also, check ventilation as blocked vents prevent cooling during demanding playback. Clean dust from the amplifier’s intake vents and ensure 4+ inches of clearance on all sides.

Q: Can a reset fix my amplifier’s protect mode?

A: Yes, sometimes. Power down your amplifier completely, wait 10-15 minutes, then power on again. This clears temporary faults and allows internal capacitors to discharge. If the protect mode activates again immediately, the problem is persistent and requires investigation of the power supply, ground connections, or internal components.

Q: Is protect mode dangerous?

A: Protect mode itself is not dangerous; it’s a safety feature. However, the condition triggering it may require attention. Continuous activation can indicate overheating, which stresses components. Persistent shorts or mismatched loads can damage speakers or the amplifier over time. Address the root cause rather than ignoring repeated protected mode activation.

Q: What’s the difference between protect mode and the amp just shutting off?

A: Protect mode activates intentionally, the amplifier detects a fault and shuts down to prevent damage. A sudden shutdown without a protect indicator suggests power loss, a tripped circuit breaker, or a blown fuse. Check power connections and test fuses first.

Q: Can blown speakers cause protect mode?

A: Yes. A blown speaker voice coil creates a short circuit that forces the amplifier into protect mode. Test speakers individually using a 9V battery, and the cone should move when connected. No movement or burning smells indicate failure. Replace damaged speakers before powering on the amplifier again.

Q: My amplifier enters protect mode in hot weather but works fine otherwise. What should I do?

A: Temperature-dependent protection indicates marginal thermal headroom. Improve ventilation immediately. Use additional cooling fans if necessary. Reduce operating volume slightly. Avoid placing the amplifier in direct sunlight or near heat sources. Consider upgrading to a higher-wattage amplifier if the current model consistently overheats during normal use.

Conclusion

Most protect mode issues resolve through methodical troubleshooting and proper maintenance. Address root causes rather than accepting repeated protection activations as normal. Your amplifier protects itself for good reason, so respect that protection by investigating and fixing the underlying fault.
